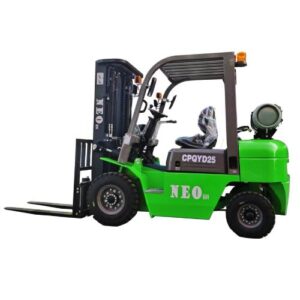

K series 1.5-4 tons gasoline and LPG forklift truck
The K Series LPG and gasoline forklift truck (1.5–4 ton) is a powerful, reliable, and cost-effective material handling solution designed for a wide range of industrial applications. With a lifting capacity ranging from 1.5 tons to 4 tons and a lifting height of 3 to 7 meters, this counterbalanced forklift is ideal for warehouses, logistics operations, construction sites, ports, and manufacturing facilities.
This series can be equipped with high-performance Guangqing or Nissan engines, ensuring strong power output, fuel efficiency, and long service life. Its advanced engineering and robust structure make it suitable for both indoor and outdoor operations.
Designed with operator comfort and safety in mind, the K Series forklift features a wide-view mast, ergonomic controls, and a user-friendly digital display for real-time vehicle monitoring. The adjustable steering wheel and enhanced air intake system further improve performance and durability, even in dusty environments.
![]()
Key Features:
- Load capacity from 1.5 to 4 tons
- Lift height up to 7 meters
- Compatible with gasoline and LPG fuel systems
- Equipped with Nissan or Guangqing engines
- Wide-view mast for enhanced safety
- Ergonomic design with adjustable steering
- Low maintenance with optional cast steering axle
- Environmentally friendly and cost-efficient operation
Specification:
| Model | CPQYD15 | CPQYD20 | CPQYD25 | CPQYD30 | CPQYD35 | CPQYD40 | |
| Power | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | |
| Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Free lift height | mm | 100 | 100 | 100 | 100 | 100 | 0 |
| Fork size | mm | 920×100×35 | 1070×122×40 | 1070×122×40 | 1070×125×45 | 1070×125×50 | 1070×150×45 |
| Wheelbase | mm | 1410 | 1600 | 1600 | 1700 | 1700 | 1900 |
| Service weight | Kg | 2660 | 4030 | 4130 | 4350 | 4560 | 5300 |
| Battery | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/100 |
| Engine | GQ/Nissan | GQ/Nissan | GQ/Nissan | GQ/Nissan | GQ/Nissan | GQ/Nissan | |
| Engine rated power | kw/r.p.m | 32 | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 |
| Gearbox | Mechanical
/Hydraulic |
Mechanical
/Hydraulic |
Mechanical
/Hydraulic |
Mechanical
/Hydraulic |
Mechanical
/Hydraulic |
Mechanical
/Hydraulic |
|
| Working pressure | Mpa | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 |
Applications:
- Warehousing and storage
- Logistics and distribution centers
- Ports and docks
- Construction and mining industries
- Manufacturing facilities
The K Series forklift truck delivers the perfect balance of performance, efficiency, and affordability, making it an excellent choice for businesses looking to optimize their material handling operations.
